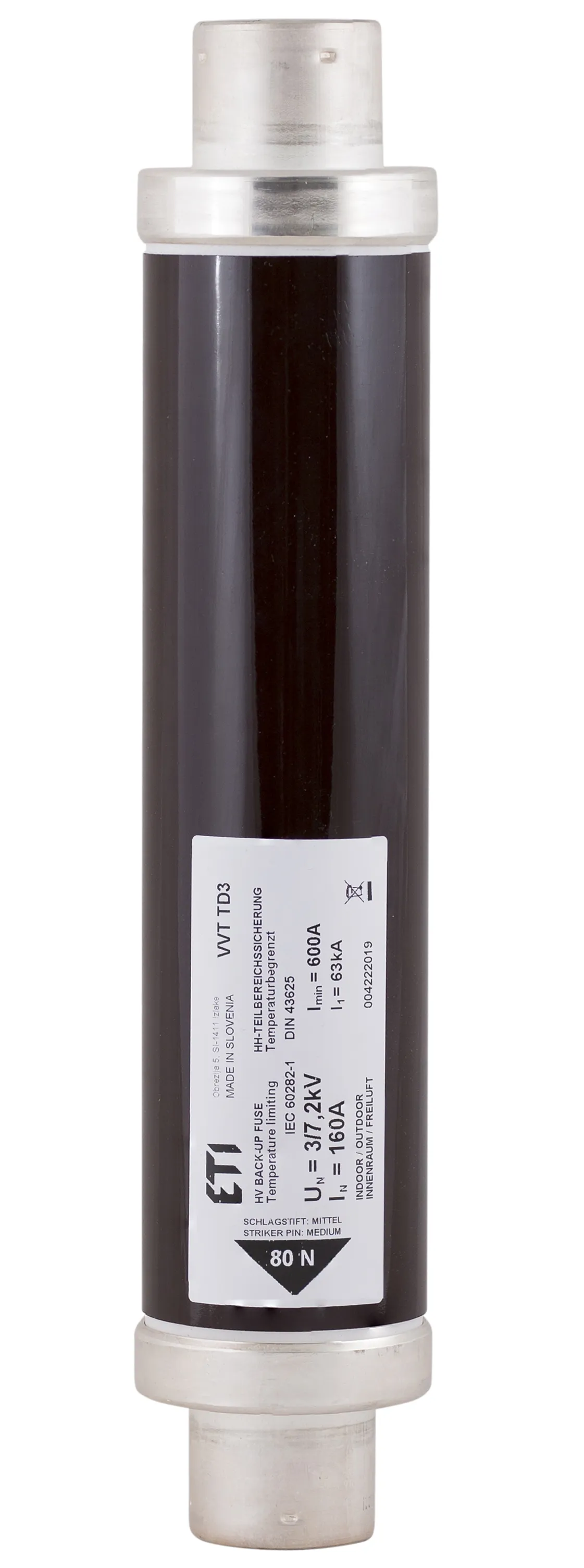

Talilni vložek VVC3 7,2kV/160A 442 004220619
Specifikacija
- Koda izdelka:
- 004220619
- Opis:
- VVC3 7,2kV/160A 442
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- Tip varovalke:
- NEW VVC 50N striker
- Nazivna AC napetost:
- 7200V
- Velikost:
- 442
- Nazivni tok:
- 160A
- Indikator:
- 50N udarna igla
- AC Izklopna zmogljivost:
- 63kA
- Nazivni minimalni odklopni tok:
- 600A
- Hladna upornost:
- 3.6mΩ
- Izgubna moč:
- 173W
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895915263
- Teža izdelka
- 5.5 kg
- Carinska tarifa
- 85351000
- logis_net_width
- 87 mm
- logis_net_height
- 508 mm
- logis_net_depth
- 87 mm
Transportno pakiranje
- Količina
- 3
- EAN
- 3838895915270
- Teža
- 16.97 kg
- Odpremna količina
- 60
ETIM klasifikacija
- Klasifikacija
- EC003507
- Ime razreda
- Medium-/high voltage fuse
- Rated current
- 160A
- Rated voltage
- 7,2kV
- Voltage type
- AC
- Rated frequency
- 45…60Hz
- Breaking capacity
- 63kA
- Utilization category
- Other
- Application
- Other
- Length
- 442mm
- Diameter
- 83,5mm
- Performance category according to IEC 60282-1
- Back-up
- With striker
- Da
- Standard
- IEC
- Installation technique
- Air
