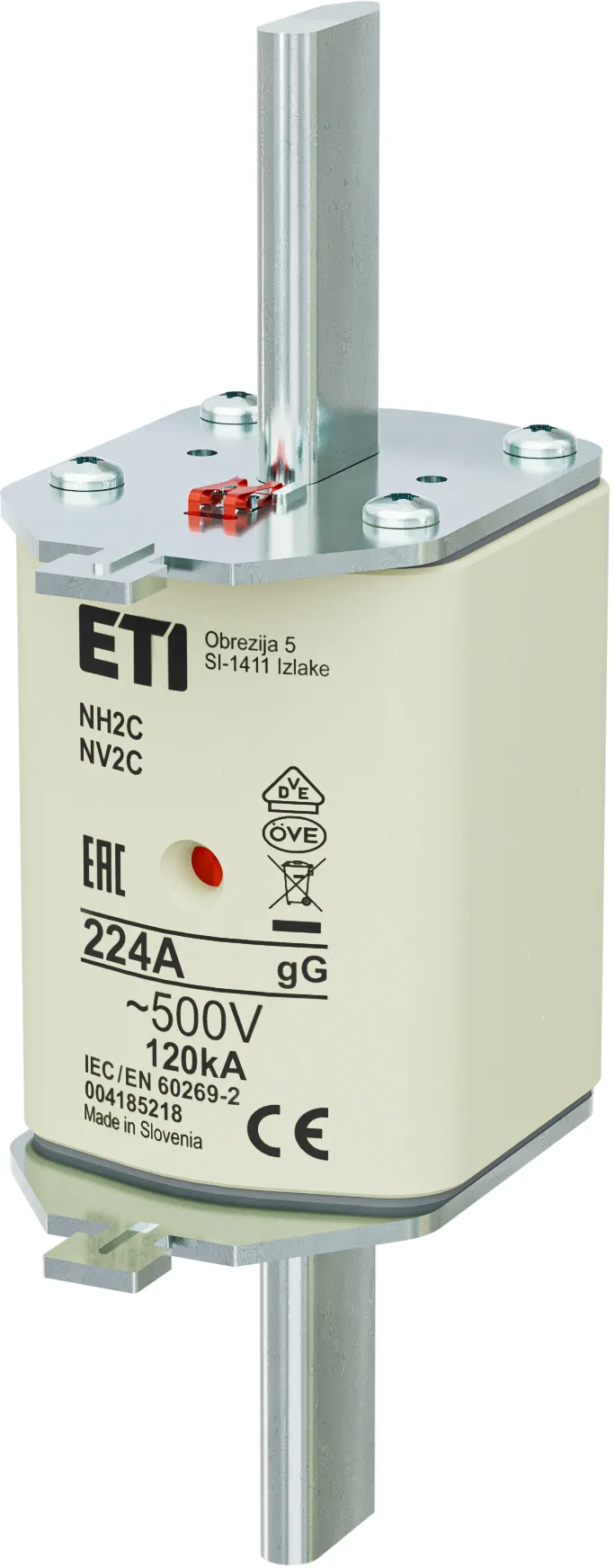

Talilni vložek NH2C gG 224A/500V 004185218
Specifikacija
- Koda izdelka:
- 004185218
- Opis:
- NH2C gG 224A/500V
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- Tip varovalke:
- NH
- Velikost:
- NH2C
- Nazivni tok:
- 224A
- Karakteristika:
- gG
- Indikator:
- Combination fuse status indicator
- Nazivna AC napetost:
- 500V
- Nazivna enosmerna napetost:
- 250V
- AC Izklopna zmogljivost:
- 120kA
- Izgubna moč:
- 14.5W
- Skupni Joulov integral (A2s):
- 688000
- Talilni Joulov integral (A2s):
- 164000
- Standardi:
- IEC 60269-1,IEC 60269-2
- Aplikacije:
- For cable protection
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895354710
- Teža izdelka
- 435 g
- Carinska tarifa
- 85361090
- logis_net_width
- 46 mm
- logis_net_height
- 150 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 3
- EAN
- 3838895326106
- Teža
- 1.385 kg
Transportno pakiranje
- Količina
- 15
- EAN
- 3838895326113
- Teža
- 7.275 kg
- Odpremna količina
- 780
ETIM klasifikacija
- Klasifikacija
- EC000055
- Ime razreda
- Low Voltage HRC fuse
- Construction size
- NH2C
- Rated current
- 224
- Rated voltage
- 500
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- Ne
