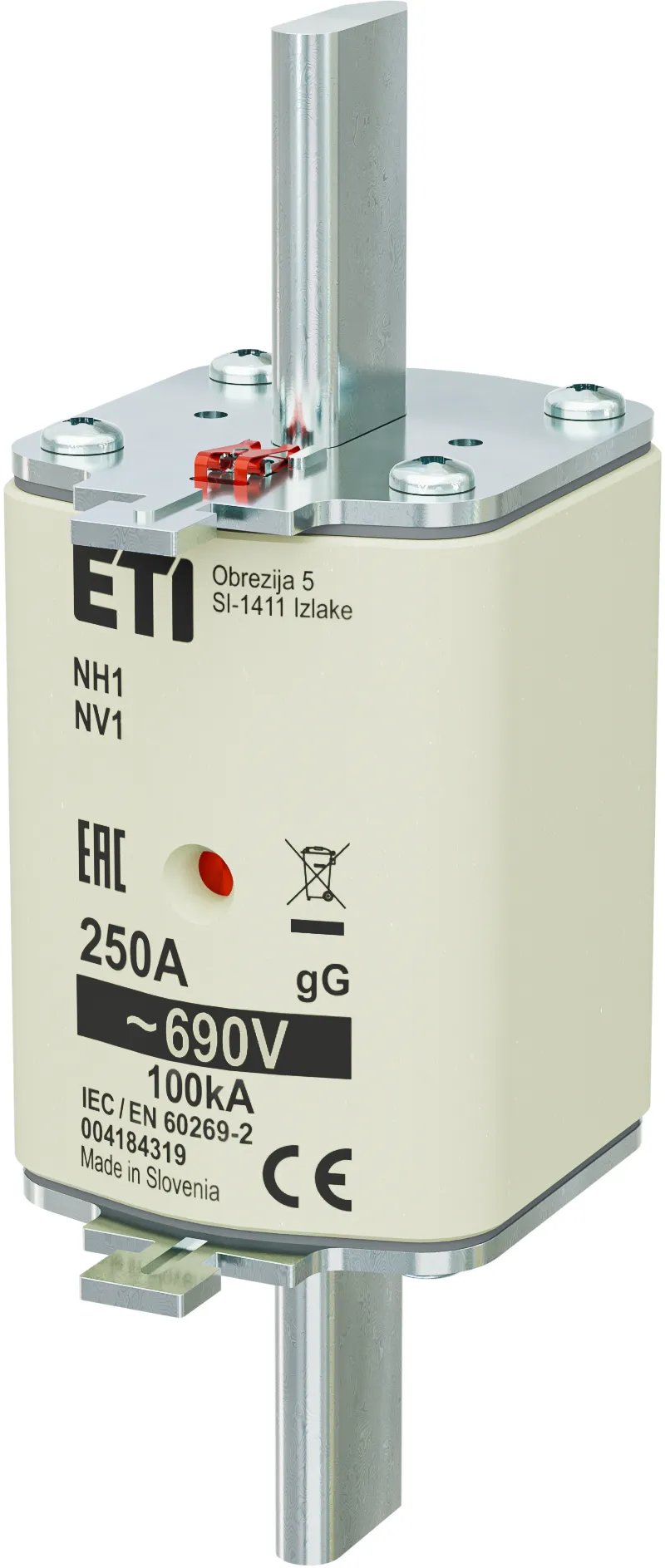

Talilni vložek NH1 gG 250A/690V 004184319
Specifikacija
- Koda izdelka:
- 004184319
- Opis:
- NH1 gG 250A/690V
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- Tip varovalke:
- NH
- Velikost:
- NH1
- Nazivni tok:
- 250A
- Karakteristika:
- gG
- Indikator:
- Combination fuse status indicator
- Nazivna AC napetost:
- 690V
- Nazivna enosmerna napetost:
- 250V
- AC Izklopna zmogljivost:
- 100kA
- Izgubna moč:
- 20W
- Skupni Joulov integral (A2s):
- 620000
- Talilni Joulov integral (A2s):
- 120000
- Standardi:
- IEC 60269-1,IEC 60269-2
- Aplikacije:
- For cable protection
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 5904722985322
- Teža izdelka
- 420 g
- Carinska tarifa
- 85361090
- logis_net_width
- 46 mm
- logis_net_height
- 136 mm
- logis_net_depth
- 65 mm
Osnovno pakiranje
- Količina
- 3
- EAN
- 3838895363477
- Teža
- 1.33 kg
Transportno pakiranje
- Količina
- 24
- EAN
- 3838895363484
- Teža
- 10.99 kg
- Odpremna količina
- 1248
ETIM klasifikacija
- Klasifikacija
- EC000055
- Ime razreda
- Low Voltage HRC fuse
- Construction size
- NH1
- Rated current
- 250
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- Ne
