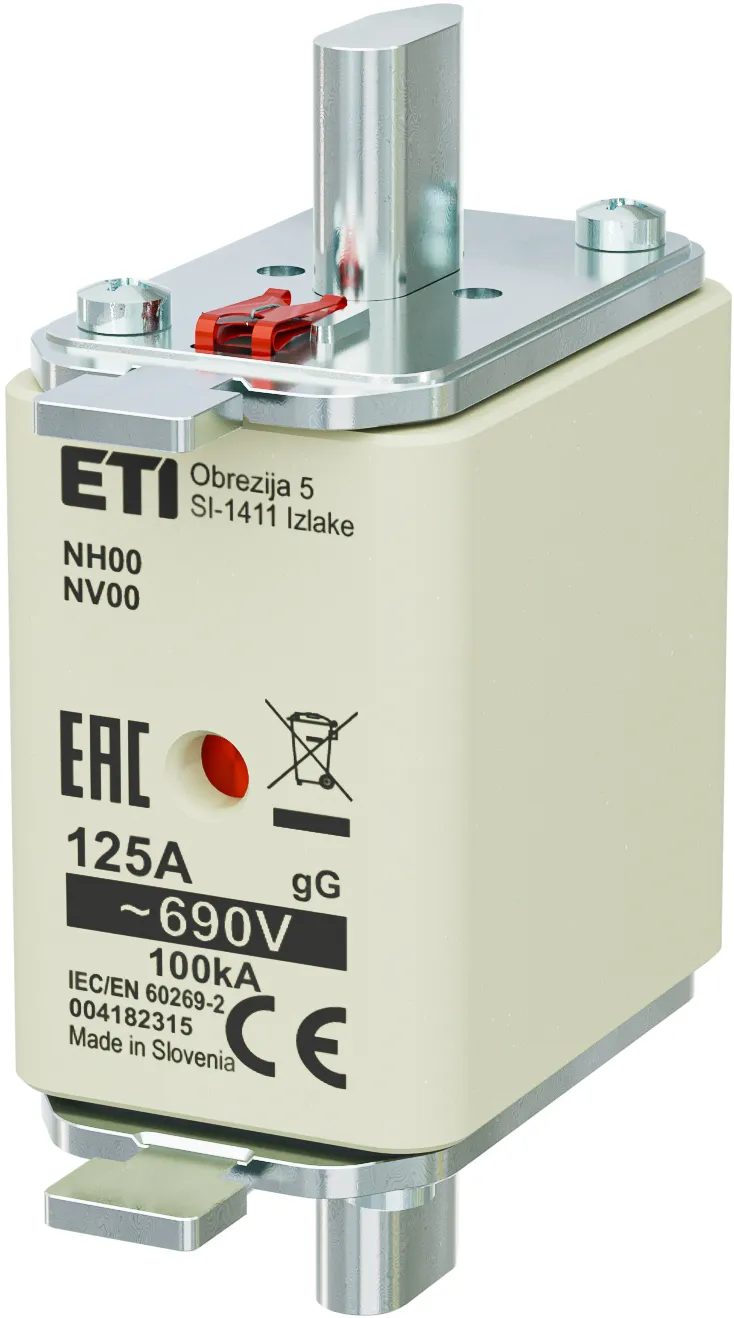

Talilni vložek NH00 gG 125A/690V 004182315
Specifikacija
- Koda izdelka:
- 004182315
- Opis:
- NH00 gG 125A/690V
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- Tip varovalke:
- NH
- Velikost:
- NH00
- Nazivni tok:
- 125A
- Karakteristika:
- gG
- Indikator:
- Combination fuse status indicator
- Nazivna AC napetost:
- 690V
- Nazivna enosmerna napetost:
- 250V
- AC Izklopna zmogljivost:
- 100kA
- Izgubna moč:
- 11W
- Skupni Joulov integral (A2s):
- 150000
- Talilni Joulov integral (A2s):
- 30000
- Standardi:
- IEC 60269-1,IEC 60269-2
- Aplikacije:
- For cable protection
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895906841
- Teža izdelka
- 170 g
- Carinska tarifa
- 85361090
- logis_net_width
- 30 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 56 mm
Osnovno pakiranje
- Količina
- 3
- EAN
- 3838895352495
- Teža
- 0.533 kg
Transportno pakiranje
- Količina
- 90
- EAN
- 3838895352501
- Teža
- 16.352 kg
- Odpremna količina
- 4680
ETIM klasifikacija
- Klasifikacija
- EC000055
- Ime razreda
- Low Voltage HRC fuse
- Construction size
- NH00
- Rated current
- 125
- Rated voltage
- 690
- Voltage type
- AC
- Rated switching capacity
- 100
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- Ne
