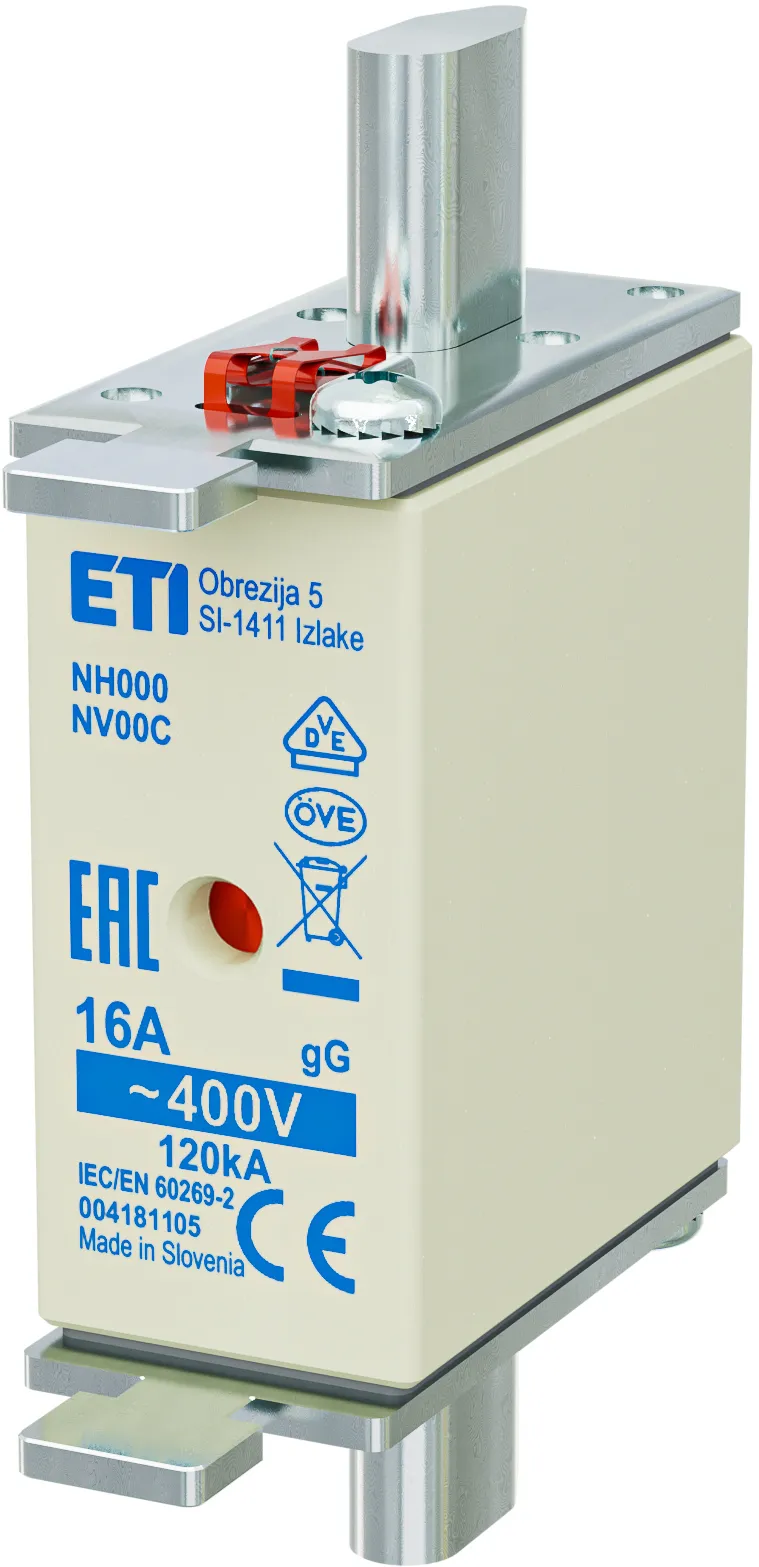

Talilni vložek NH000 gG 16A/400V 004181105
Specifikacija
- Koda izdelka:
- 004181105
- Opis:
- NH000 gG 16A/400V
- Ime razreda:
- Talilni vložek
- efuse:
- 1
- Tip varovalke:
- NH
- Velikost:
- NH000
- Nazivni tok:
- 16A
- Karakteristika:
- gG
- Indikator:
- Combination fuse status indicator
- Nazivna AC napetost:
- 400V
- Nazivna enosmerna napetost:
- V
- AC Izklopna zmogljivost:
- 120kA
- Izgubna moč:
- 2.4W
- Skupni Joulov integral (A2s):
- 721
- Talilni Joulov integral (A2s):
- 220
- Standardi:
- IEC 60269-1,IEC 60269-2
- Aplikacije:
- For cable protection
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895985631
- Teža izdelka
- 120 g
- Carinska tarifa
- 85361050
- logis_net_width
- 21 mm
- logis_net_height
- 79 mm
- logis_net_depth
- 52 mm
Osnovno pakiranje
- Količina
- 3
- EAN
- 3838895316312
- Teža
- 0.373 kg
Transportno pakiranje
- Količina
- 120
- EAN
- 3838895316329
- Teža
- 15.286 kg
- Odpremna količina
- 6240
ETIM klasifikacija
- Klasifikacija
- EC000055
- Ime razreda
- Low Voltage HRC fuse
- Construction size
- NH000
- Rated current
- 16
- Rated voltage
- 400
- Voltage type
- AC
- Rated switching capacity
- 120
- Utilization category
- gL/gG (cable protection/equipment protection)
- Type of fuse status indicator
- Combination fuse status indicator
- Insulated metal gripping lugs (IMGL)
- Ne
Karakteristika
